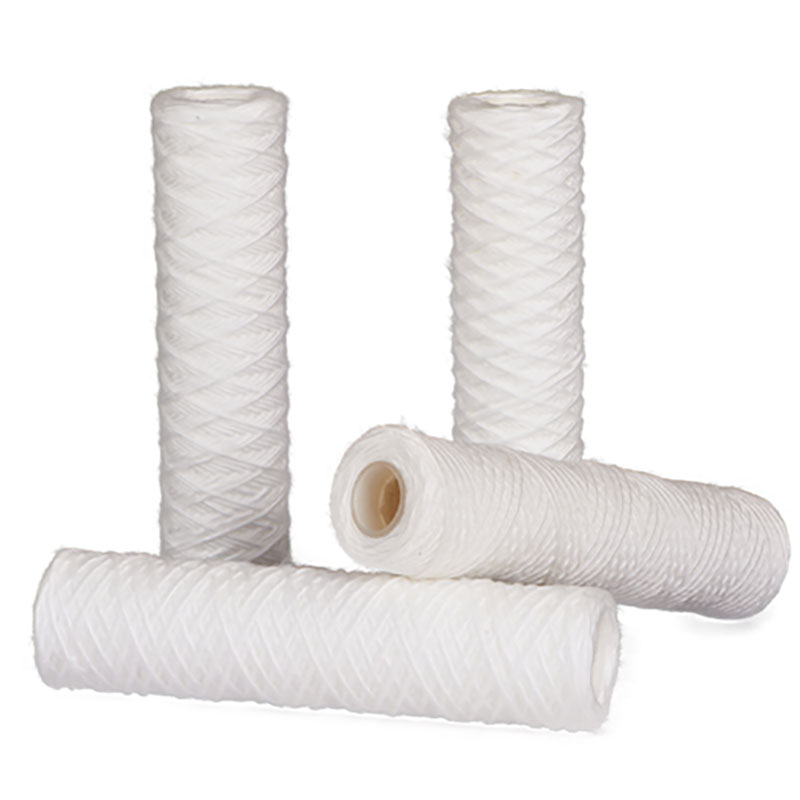

Wound Filter Cartridges
Wound Filter Cartridges are depth filtration elements designed to remove suspended particles, dirt, and other contaminants from industrial liquids. Aris Filtration manufactures wound filter cartridges for applications requiring reliable particulate retention across water treatment, chemicals, oil & gas, refineries, textiles, mining, paints, inks, power and other process industries.
What Are Wound Filter Cartridges?
A Wound Filter Cartridge is a depth-type filter element manufactured by continuously winding filter media around a central core in a controlled pattern. The winding creates progressively smaller filtration passages through the cartridge, allowing contaminants to become trapped within the depth of the media rather than only on its surface.
This construction makes wound cartridges suitable for pre-filtration, process filtration and polishing applications where suspended solids and particulate contamination need to be controlled.
Aris Filtration is an industrial filtration manufacturer and exporter based in Ahmedabad, Gujarat, with expertise in macro- and micro-filtration solutions for air, gas and liquid applications. Its product portfolio includes cartridge filter housings, disposable filter cartridges, reusable filter elements, filter bags and other industrial filtration products.
How Do Wound Filter Cartridges Work?
Wound cartridges use a precisely wound filtration medium to create a depth-filtration structure. When contaminated liquid enters the filter housing, the fluid passes through the wound media while suspended particles are retained within the filtration structure.
The basic filtration process is:
- Contaminated liquid enters the filter housing.
- Liquid passes through the wound filtration media.
- Larger particles are retained in the outer layers.
- Smaller particles are captured deeper within the media.
- Filtered liquid exits through the cartridge core.
The actual filtration performance depends on the selected media, micron rating, cartridge dimensions, process fluid, contaminant loading, operating conditions and filter-housing configuration.
Why Choose Wound Filter Cartridges for Industrial Filtration?
Wound filter cartridges are particularly useful when a process requires depth filtration and effective particulate-holding capacity rather than only surface filtration.
Key Benefits:
- Depth filtration: Contaminants can be retained throughout the media structure.
- Effective particulate removal: Suitable for suspended solids and process contaminants.
- Flexible filtration selection: Media and filtration ratings can be selected according to application requirements.
- Wide industrial applicability: Suitable for multiple liquid-processing industries.
- Easy cartridge replacement: Designed for installation in compatible cartridge filter housings.
- Suitable for pre-filtration: Can be used to protect downstream filtration equipment and process components.
- Process-focused configuration: Cartridge selection can be matched to fluid characteristics and contaminant load.
Aris Filtration's cartridge filter housings are available in single- and multi-cartridge configurations and are designed for applications including pre-filtration, final filtration and polishing filtration.
Which Filter Media Are Available for Wound Filter Cartridges?
The correct wound filter media should be selected according to the liquid, contaminant type, required filtration level, temperature, chemical compatibility and operating conditions.
Aris Filtration can position its wound cartridge portfolio around different media options, including:
| Wound Filter Cartridge Type | Typical Selection Consideration |
|---|---|
| PP Wound Filter Cartridge | Suitable where polypropylene media is appropriate for the process fluid and contamination profile |
| Glass Fiber Wound Filter Cartridge | Considered for applications requiring glass-fiber filtration media |
| Cotton Wound Filter Cartridge | Suitable for applications where cotton media compatibility meets process requirements |
Important: The appropriate media and micron rating should be finalized from the customer's process conditions rather than selected only by industry name.
Where Are Wound Filter Cartridges Used?
Wound filter cartridges can be incorporated into industrial liquid-filtration systems across a broad range of applications. The target industries for Aris Filtration include:
- Water Treatment: Suspended-solids removal and process-water filtration
- Refineries: Process-fluid and hydrocarbon filtration
- Mining: Water and process-liquid filtration
- Pulp & Paper: Process-water and chemical filtration
- Chemicals: Solvent and process-liquid filtration
- Textiles: Dye, chemical and process-water filtration
- Power Plants: Water, coolant and process-fluid filtration
- Dye & Intermediates: Filtration of process liquids and intermediates
- Oil & Gas: Liquid and oil filtration applications
- Edible Oils: Process and oil filtration
- Automobiles: Coolant, oil and process-fluid filtration
- Petrochemicals: Hydrocarbon and chemical process filtration
- Paints & Inks: Liquid, solvent and pigment-related filtration
- Aeronautics: Process-fluid and specialized filtration applications
- Cement: Process-water and industrial liquid filtration
- Fertilizers: Chemical and process-liquid filtration
- Bio-Pharma: Process filtration where the selected media and configuration are suitable
- Ceramics: Process-liquid and slurry-related filtration
- Sugar: Process-liquid and syrup filtration
- Defence & Marines: Industrial water, oil and process-fluid filtration
Aris Filtration's existing industrial filtration portfolio already addresses applications such as water treatment, oil filtration, chemicals, textiles, dyes and intermediates, refineries, solvents and coolant filtration.
How Do You Select the Right Wound Filter Cartridge?
Selecting the correct cartridge starts with the process—not simply the desired micron rating. Consider these parameters:
- Filtration Requirement: Determine the target particle size and required filtration level.
- Filter Media: Select PP, glass fiber, cotton or another suitable media according to fluid compatibility and process requirements.
- Process Fluid: Identify whether the cartridge will handle water, oil, chemicals, solvents, dyes, inks, coolants or another process liquid.
- Flow Rate: The required flow rate influences cartridge size, number of cartridges and housing configuration.
- Contaminant Load: High-solid applications may require a suitable depth-filtration configuration to achieve practical service life.
- Filter Housing: The cartridge must match the housing dimensions, fitting arrangement and operating conditions. Aris Filtration supplies cartridge housings in multiple configurations and materials, including SS304, SS316, SS304L, SS316L and other customer-specific options.
What Makes Aris Filtration a Suitable Wound Filter Cartridge Supplier?
Aris Filtration is an Ahmedabad, Gujarat-based manufacturer and exporter of industrial filtration products serving Indian and international industrial markets. The company states that it works with macro- and micro-filtration technology and serves sectors such as oil & gas, textiles, mines and minerals, cement and water treatment.
Its quality program states that products are tested and retested before release, with quality procedures covering fabrication, liquid penetrant testing, radiography, non-destructive testing, hydro testing, surface treatment and packing. The company also states that its manufacturing quality standards meet ISO 9001, ASME and CE-PED requirements.
For buyers, this means cartridge selection can be discussed together with the filter housing, filtration process and overall industrial application, rather than treating the cartridge as an isolated component.
Frequently Asked Questions
(1)What is a wound filter cartridge used for?
A wound filter cartridge is used for depth filtration of liquids to retain suspended particles, dirt and other contaminants. It is commonly considered for industrial water, chemicals, oils and process-liquid filtration.
(2)What is the difference between a wound cartridge and a pleated cartridge?
A wound cartridge uses a wound filtration medium that provides depth filtration, while a pleated cartridge uses folded filter media to increase available filtration surface area. The better choice depends on the fluid, contaminant load, required filtration level and process conditions.
(3)Which wound filter media should I choose?
PP, glass fiber and cotton wound cartridges have different material characteristics. The correct choice depends on chemical compatibility, temperature, fluid properties, contaminant type and required filtration performance.
(4)Can wound filter cartridges be used in water treatment?
Yes. Wound filter cartridges can be used in industrial water-treatment applications where suspended particulate removal is required. The cartridge rating and media should be selected according to the water quality and treatment stage.
(5)Does Aris Filtration manufacture wound filter cartridges in India?
Yes. Aris Filtration is based in Ahmedabad, Gujarat, India, and its product portfolio includes Wound Filter Cartridges as part of its disposable filter cartridge range.
Looking for Wound Filter Cartridges for Your Process?
Choose the cartridge based on your fluid, filtration requirement, micron rating, flow rate, contaminant load and housing configuration. Aris Filtration can help industrial buyers evaluate the appropriate filtration solution for their process requirements.
Contact Aris Filtration for Wound Filter Cartridges manufactured in Gujarat, India, and discuss your application-specific filtration requirements. The company operates from Ahmedabad and provides industrial filtration products for Indian and international markets.
