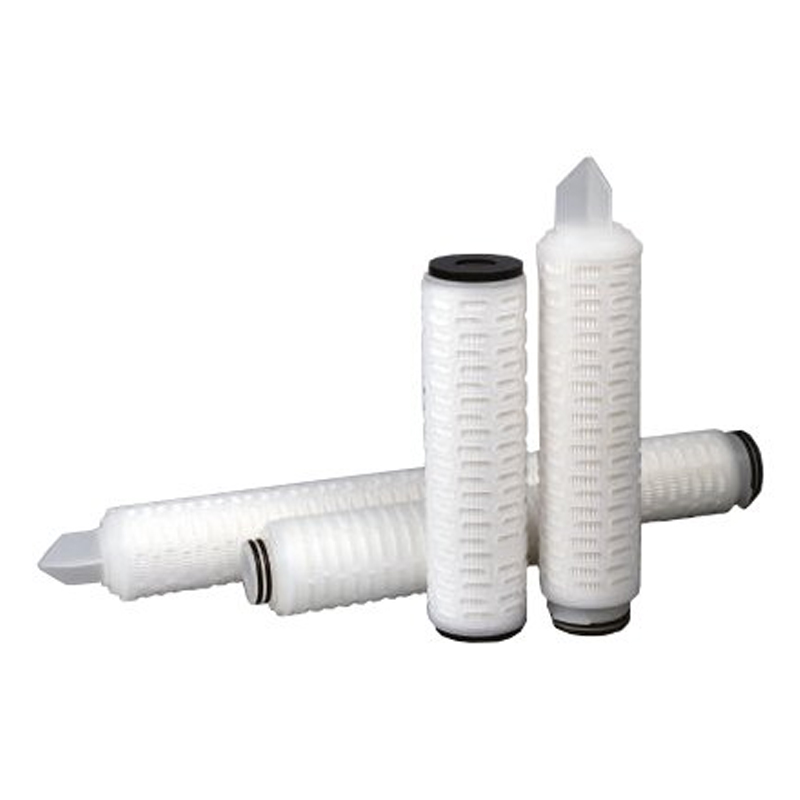

PP Pleated Filter Cartridge
A PP Pleated Filter Cartridge is a high-performance filtration element made from polypropylene (PP) microfiber media that removes suspended particles, sediments, and contaminants from liquids and gases. It offers high dirt-holding capacity, low pressure drop, excellent chemical compatibility, and consistent filtration efficiency for industrial process applications.
What is a PP Pleated Filter Cartridge?
A PP Pleated Filter Cartridge (Polypropylene Pleated Filter Cartridge) is a surface filtration cartridge manufactured with pleated polypropylene microfiber media to maximise filtration area in a compact design. The pleated construction provides a significantly larger filtration surface area than standard depth filter cartridges, allowing higher flow rates, longer service life, and reduced replacement frequency.
PP pleated cartridges are widely used as pre-filters and final filtration solutions in industries where process purity, equipment protection, and consistent product quality are essential. Their broad chemical compatibility makes them suitable for water-based chemicals, acids, alkalis, process water, RO systems, and several industrial fluids.
Why Choose a PP Pleated Filter Cartridge for Industrial Filtration?
Industrial filtration systems require cartridges that can deliver accurate performance without increasing operating costs. PP pleated filter cartridges are designed to achieve this balance.
Key Benefits:
- High filtration efficiency across multiple micron ratings
- Large filtration surface area through pleated media
- High contaminant holding capacity
- Low differential pressure
- Excellent flow rates
- Broad chemical compatibility
- Thermally bonded construction without media movement
- Easy installation and replacement
- Suitable for both pre-filtration and fine filtration
- Cost-effective alternative for many membrane pre-filtration applications
How Does a PP Pleated Filter Cartridge Work?
The cartridge consists of multiple layers of polypropylene microfiber arranged into uniform pleats around a hard core.
As liquid or gas passes through the media:
- Larger particles are kept on the outer surface.
- Fine contaminants are captured around the filtration media.
- Clean fluid exits with minimal pressure loss.
- The pleated structure increases dirt-holding capacity, extending cartridge life.
This design improves filtration efficiency while minimizing operational downtime.
Technical Specifications
| Specification | Details |
|---|---|
| Filter Media | Polypropylene (PP) Microfiber |
| Micron Rating | 0.2, 0.45, 1, 2, 3, 5, 10, 25, 50, 75, 100 µm |
| Standard Lengths | 10", 20", 30", 40" |
| Outer Diameter | 50 mm, 63 mm, 68 mm |
| Inner Diameter | 28 mm, 50 mm |
| End Connections | DOE, SOE, Code 222, Push Fit |
| Construction | Thermally Welded |
| Filtration Type | Surface Filtration |
| Media Options | PP, PTFE, PES, PVDF (product family) |
Which Industries Use PP Pleated Filter Cartridges?
PP Pleated Filter Cartridges are suitable for a wide range of industrial filtration applications.
Water Treatment:
- RO pre-filtration
- Process water
- Industrial water treatment plants
- Wastewater treatment
Chemical Processing:
- Chemical transfer
- Acid and alkali filtration
- Solvent filtration
- Process fluid purification
Oil & Gas:
- Process liquid filtration
- Utility water filtration
- Equipment protection
Refineries & Petrochemicals:
- Cooling water
- Chemical dosing systems Intermediate process filtration.
Paints, Inks & Coatings:
- Pigment removal
- Resin filtration
- Product polishing
Pharmaceuticals & Bio-Pharma:
- Process water
- Buffer solutions
- Pre-membrane filtration
Food & Beverage:
- Beverage processing
- Edible oils
- Dairy processing
- Ingredient filtration
Additional Industries:
- Mining
- Pulp & Paper
- Textiles
- Power Plants
- Dye & Intermediates
- Automobiles
- Cement
- Fertilizers
- Ceramics
- Sugar
- Aeronautics
- Defence & Marine industries.
What Makes PP Pleated Filter Cartridges Different from Standard Filter Cartridges?
| Feature | PP Pleated Cartridge | Conventional Depth Cartridge |
|---|---|---|
| Filtration Area | High | Moderate |
| Flow Rate | Higher | Lower |
| Pressure Drop | Lower | Higher |
| Dirt Holding Capacity | High | Moderate |
| Service Life | Longer | Shorter |
| Operating Efficiency | Excellent | Standard |
Key Statement: PP pleated filter cartridges provide greater filtration area, resulting in improved flow rates and longer operational life compared to conventional depth filter cartridges.
What Features Improve Filtration Performance?
- High Surface Area: Pleated media increases the available filtration area, enabling higher production.
- Low Pressure Drop: The optimized media structure minimizes resistance to flow, helping reduce energy consumption.
- High Dirt Holding Capacity: The cartridge captures more contaminants before replacement becomes necessary.
- Broad Chemical Compatibility: Polypropylene is compatible with a wide range of industrial chemicals, making it suitable for various applications.
- Reliable Construction: Thermally welded components reduce the possibility of media migration while ensuring structural integrity.
How to Select the Right PP Pleated Filter Cartridge?
Consider the following frameworks before selecting a cartridge:
- Required micron rating
- Flow rate
- Operating pressure
- Fluid compatibility
- Operating temperature
- Cartridge length
- End connection type
- Required filtration efficiency
- Process application
Choosing the correct cartridge helps maximize filtration performance while reducing maintenance costs.
Why Choose Aris Filtration?
Aris Filtration is a leading manufacturer and exporter of industrial filtration products in Gujarat, India, delivering filtration solutions for liquid, gas, and air applications. The company serves industries including oil & gas, steel, mining, cement, textiles, water treatment, chemicals, pharmaceuticals, food processing, and power generation using advanced micron and macron filtration technologies.
Our Advantages:
- ISO 9001:2015 Certified manufacturer
- High-quality industrial filtration solutions
- Precision manufacturing
- Multiple micron ratings available
- Custom cartridge structures
- Fast delivery across India and export markets
- Technical application support
- Reliable after-sales guidance
Whether you require filtration for process water, chemicals, pharmaceuticals, paints, edible oils, or industrial manufacturing, our PP Pleated Filter Cartridges are designed to deliver dependable filtration performance with long service life.
Frequently Asked Questions (FAQs)
(1)What is a PP Pleated Filter Cartridge used for?
PP Pleated Filter Cartridges are used to remove suspended particles, sediments, and contaminants from liquids and gases in industrial filtration systems, including water treatment, chemical processing, pharmaceuticals, food processing, and petrochemical industries.
(2)What micron ratings are available?
Standard micron ratings include 0.2, 0.45, 1, 2, 3, 5, 10, 25, 50, 75, and 100 microns.
(3)What are the standard cartridge lengths?
Common lengths are 10-inch, 20-inch, 30-inch, and 40-inch.
(4)Why is polypropylene used as the filter media?
Polypropylene offers excellent chemical resistance, high filtration efficiency, low extractables, and compatibility with a wide variety of industrial fluids.
(5)Which industries commonly use PP Pleated Filter Cartridges?
They are widely used in water treatment, refineries, mining, pulp & paper, chemicals, textiles, power plants, oil & gas, petrochemicals, pharmaceuticals, paints, inks, edible oils, sugar, cement, fertilizers, ceramics, defence, marine, and automotive industries.
(6)Can PP Pleated Filter Cartridges be used as RO pre-filters?
Yes. They are commonly used as pre-filtration cartridges before RO membranes to reduce suspended solids and extend membrane life.
